SPRAYING SYSTEMS
SELETRON is a cutting-edge electronic shut-off nozzle valve that, applied ARAG nozzle holders, allows the separated control of every single nozzle. The electronic parts embedded in the electronic valve control the actuator the communication with the computer* via Can-Bus, receiving the opening/ closing commands and outputting the information about valve status. SELETRON allows you to divide the boom in as many sections as the number of nozzles thereby minimizing any overlap and reducing running costs and impact on the environment (Buffer Zone). SELETRON multiple nozzle holders (twin and fourfold ones) allow you to automatically select the nozzle (or the nozzle set) according to the speed and required instant spray rate (Variable Application). Reduced current absorption limited to the time the electronic valve is activated.
One single cable for power and command transmission to up to 96 actuators.
Easy to install, compact size and weight allow retrofitting to upgrade existing machines.
Installing the valve next to the nozzle ensures the continuous fluid flow inside the boom, with the following advantages: lower dead volume, lower external contamination during boom flushing, even concentration of chemical along the boom, at the beginning of every new spraying job.

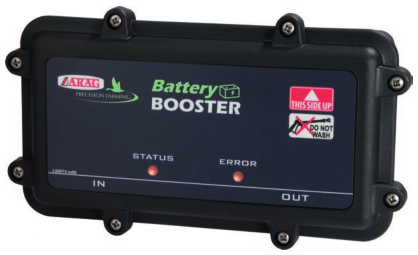

BATTERY BOOSTER is a power accumulator that, used in a system with SELETRON, allows connecting a higher number of valves making up for the limits of the tractor and machine electric system.
MAIN FEATURES • LEDs indicating operation modes / errors. • Protection against polarity inversion and short-circuits. • Protection class: IP 69K • The kit includes: no. 1 Battery Booster and no. 1 adapter cable
3 tiers system
iso bus
ISOBUS CONTROL SYSTEM FOR SPRAYERS
The standard ISOBUS (ISO11783) defines the communication protocol of the electronic devices of equipment on the agricultural machine, regardless of the manufacturer, allowing them to exchange information and interact. The system is based on a single monitor named Virtual Terminal (VT), through which the operator can see, manage and set all the parameters of the tractor and equipment connected to it through the special ISOBUS socket.
The equipment is provided with the Implement ECU, which checks all the functions of the implement and manages the communication with the Virtual Terminal.
The standard envisages also the possibility to connect other control devices(pushbuttons or joysticks, etc.) to facilitate the control of the equipment. These are called Auxiliary Inputs.
The Implement ECU IBX 100 ISOBUS has been tested with the most important tractormanufacturers using the Isobus system.
